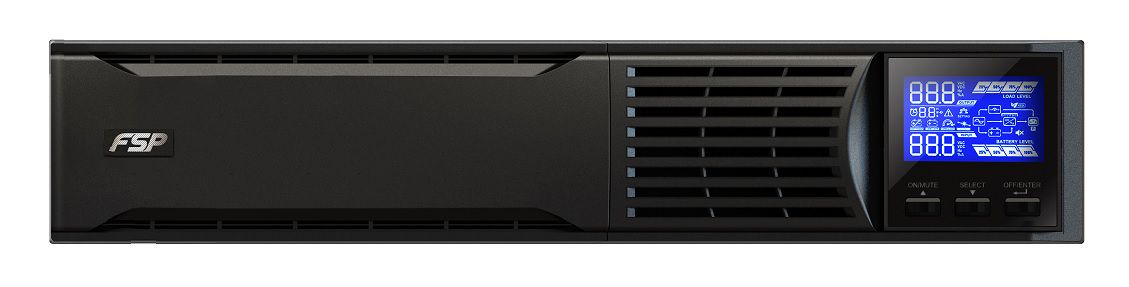

Uninterruptible Power Supply CHAMP 1000VA 900W, Online, Rack, FSP
Pickup at the LEMONA electronics store within 2 hours (if the item is in the store and the order is placed before 3 p.m.)
 2 pcs | Vilnius Žirmūnai Store |
| 1 pcs | Vilnius Naujamiestis Store |
| 1 pcs | Kaunas Store |
| 1 pcs | Klaipėda Store |
| 1 pcs | Šiauliai Store |
| 7 pcs | Central Warehouse (new location) |
Home delivery in Lithuania 1-2 b.d.
Delivery to pickup location 1-2 b.d.
Products purchased together
Delivery terms
Pickup In Store
Pickup In Store For free
Quantity in shop
| 2 pcs | Vilnius Žirmūnai Store |
| 1 pcs | Vilnius Naujamiestis Store |
| 1 pcs | Kaunas Store |
| 1 pcs | Klaipėda Store |
| 1 pcs | Šiauliai Store |
| 7 pcs | Central Warehouse (new location) |
Home delivery in Lithuania
Home delivery in Lithuania
Over €50.00 (Orders up to 1000 kgs) | For free |
To €50.00 (Orders up to 3 kgs) | €3.49 |
To €50.00 (Orders up to 1000 kgs) | €4.99 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
€2.39
Product description
Features
- True double-conversion
- Microprocessor control optimizes reliability
- Input power factor correction
- Output power factor 0.9
- Wide input voltage (110V - 300V)
- Converter mode available
- ECO mode for energy saving(Only available for 1-3KVA
- Adjustable battery string numbers only available for 6K/10K modelz
- Adjustable charging current via LCD or software (1A~6A)
- Emergency power off function (EPO) only available for 6K/10K models
- Generator compatible
- Smart SNMP works well with either USB or RS-233 together
- Comprehensive LCD display allows easy monitoring and access of UPS status
Technical data
| MODEL | Champ RM 1K(L) | Champ RM 2K(L) | Champ RM 3K(L) |
| PHASE | Single phase with ground | ||
| CAPACITY | 1000VA / 900W | 2000VA / 1800W | 3000VA / 2700W |
| PARALLEL CAPABILITY | NO | ||
| INPUT | |||
| Nominal Voltage | 110V/115V/120V/127V or 208V/220V/230V/240V | ||
| Voltage Range | 60-145Vac or 110-300 Vac ±3% @ 50% load; 90-145Vac or 180-300 Vac ±3% @ 100% load | ||
| Frequency Range | 40 ~ 70 Hz | ||
| Power Factor | ≧ 0.99 @ nominal voltage (100% load) | ||
| OUTPUT | |||
| Output Voltage | 110V/115V/120V/127V or 208V/220V/230V/240V | ||
| AC Voltage Regulation (Batt. Mode) | ± 1% | ||
| Frequency Range (Synchronized Range) | 47~53Hz or 57~63Hz | ||
| Frequency Range (Batt. Mode) | 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz | ||
| Current Crest Ratio | 3:1 | ||
| Harmonic Distortion | ≦ 3 % THD (Linear Load) ≦ 6 % THD (Non-linear Load) | ||
| Transfer time AC mode to Battery mode | zero | ||
| Transfer time Inverter to Bypass | 4ms (typical) | ||
| Waveform (Batt. Mode) | Pure Sine Wave | ||
| Overload AC Mode | - | ||
| Overload Battery Mode | - | ||
| EFFICIENCY | |||
| AC Mode | 88.00% | 89.00% | 90.00% |
| ECO Mode | - | - | - |
| Battery Mode | 83.00% | 87.00% | 88.00% |
| BATTERY | |||
|
| Standard model | ||
| Battery Type | 12V / 9Ah | 12V / 9Ah | 12V / 9Ah |
| Numbers | 2 | 4 | 6 |
| Typical Recharge Time | 4 hours recover to 90% capacity | ||
| Charging Current (max.) | 1.0A | ||
| Charging Voltage | 27,4VDC ± 1% | 54,7VDC ± 1% | 82,1VDC ± 1% |
|
| Long-run model | ||
| Battery Type | Depending on the capacity of external batteries | ||
| Numbers in string | 2; 3 | 4; 6; 8 | 6; 8 |
| Charging Current (max.) | 1A/2A/4A/6A (Adjustable) | ||
| Charging Voltage | 27,4VDC ± 1%; 41,0VDC ± 1% | 54,7VDC ± 1%; 82,1VDC ± 1%; 109,4VDC ± 1% | 82,1VDC ± 1%; 109,4VDC ± 1% |
| INDICATORS | |||
| LCD Panel | Load level, Battery level, AC mode, Battery mode, Bypass mode and Fault conditions | ||
| ALARM | |||
| Battery mode | Sounding every 4 seconds | ||
| Low battery | Sounding every second | ||
| Overload | Sounding twice every second | ||
| Fault | Continuosly sounding | ||
| PHYSICAL | |||
|
| Standard model | ||
| Dimension, D X W X H (mm) | 310 x 438 x 88 mm | 410 x 438 x 88 mm | 630 x 438 x 88 mm |
| Net Weight (kgs) | 12Kg | 19Kg | 29,3Kg |
|
| Long-run model* (L) | ||
| Dimension, D X W X H (mm) | 310 x 438 x 88 mm | 410 x 438 x 88 mm | 410 x 438 x 88 mm |
| Net Weight (kgs) | 9Kg | 12Kg | 14,2Kg |
| ENVIRONMENT | |||
| Operation Temperture | 0-40°C | ||
| Operation Humidity | 20 - 90 % and non-condersing | ||
| Noise Level | Less than 50dB @ 1 meter | ||
| MANAGEMENT | |||
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux and MAC | ||
| Optional SNMP | Power management from SNMP manager and web browser | ||
| * 1K-3K: Derate to 80% of capacity in Frequency converter mode or when the output voltage is adjusted to 208Vac. | |||
| * Long-run model power factor: 0.8 | |||
| Product specifications are subject to change without further notice | |||
Useful information
Specifications
Experimental product description generated by artificial intelligence
Uninterruptible Power Supply CHAMP 1000VA 900W, Online, Rack, FSP
The FSP CHAMP 1000VA 900W is a high-performance, online, rack-mountable uninterruptible power supply (UPS) designed for computers and IT systems. This robust UPS ensures continuous power to your critical equipment, protecting it from power outages and fluctuations.
Key Features
- True double-conversion online UPS: Provides pure, stable AC power even during power outages.
- Microprocessor control: Optimizes reliability and performance.
- Input power factor correction: Improves energy efficiency.
- Rack-mountable design: Ideal for server rooms and data centers.
- Adjustable battery string numbers: Offers flexibility for various power requirements.
- Adjustable charging current: Allows customization of charging speed.
- Generator compatible: Ensures seamless operation with backup generators.
- SNMP compatible: Enables remote monitoring and management.
Why Choose FSP CHAMP 1000VA 900W?
The FSP CHAMP 1000VA 900W offers superior protection for your valuable IT equipment. Its online topology ensures continuous power, preventing data loss and system downtime. The rack-mountable design makes it easy to integrate into existing IT infrastructure. Advanced features like adjustable charging current and SNMP compatibility provide enhanced control and monitoring capabilities.
Applications
This UPS is ideal for a wide range of applications, including:
- Servers
- Workstations
- Network equipment
- Point-of-sale systems
- Medical equipment
Specifications
| Parameter | Value |
|---|---|
| Capacity | 1000VA / 900W |
| Input Voltage | 110/115/120/127VAC or 208/220/230/240VAC |
| Output Voltage | 110/115/120/127VAC or 208/220/230/240VAC |
For detailed specifications, please refer to the product manual.
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
