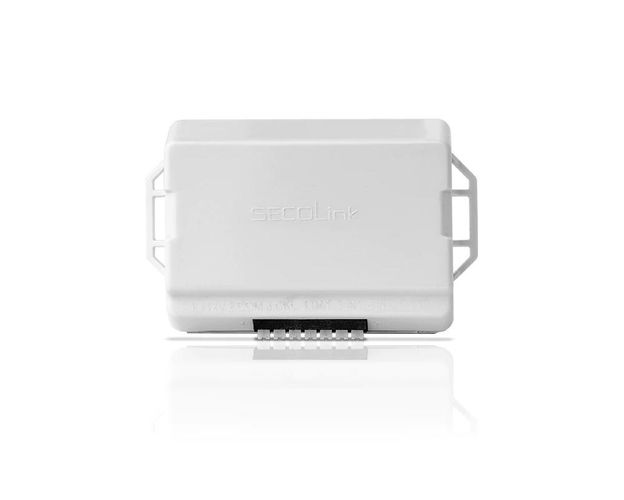

WiFi communicator SECOLINK WL800
Specifications
SKU
U-2564951
Product code
CPWL800
Supplier product description
- 2.4 GHz radio frequency
- 802.11 b / g / n wireless network standard
- 3 types of data interface for connecting various control panels
- 2 inputs (NC) and 1 output (OC type) to connect key switch zone and PGM
- 4 alarm transmission protocols for CMS
- The module is in a plastic housing. Has a status LED and a reset button
- Cloud service included
- General
- Control panels supported by data interface• SECOLINK (control panels: PAS8xx, Pxx, S16)• DSC (control panels: PC5xx, PC5xxx, PC14xx, PC15xx, PC16xx, PC18xx)• PARADOX (control panels: SP4xxx, SP6xxx, SP7xxx, EVOxxx, MG5xxx)
- Control panels supported by analog interfaceAll control panels with PGM outputs / zone inputs
- Additional services that are included in the final price of the productThe WL800 comes with 2 years of paid cloud services, allowing the user to take full advantage of the SECOLINK Pro app
- Number of recipients for internet messaging using app SECOLINK PRO10
- Reporting to Central Monitoring Station (CMS)Yes(There are additional conditions. Contact CMS company)
- Reporting to CMS formatCID by Wi-Fi/Ethernet
- Reporting protocols for CMSE2 (Enigma), FIBRO (Sur-gard), CSV (Patriot), SIA
- Compatible with SG-SYSTEM II , III IP cardYes
- Wireless Network StandardYes
- Frequency2,4 GHz
- Authentication methodsWPA/WPA2 PSK, PEAP, EAP-TLS
- IP addressStatic or dynamic (DHCP)
- In-built wired zones (inputs) on board2
- On-Board (open collector type) PGM1
- Maximum current into OUT-0,05 A
- Power supply (DC)9 - 14 V
- Average current consumption60 mA
- Maximum current consumption200 mA
- Plastic casingYes
- Overall dimensions W x D x H in mm78 x 50 x 19
- Environmental complianceROHS
- Operating temperatureFrom -10oC to +50oC
