Tiekėjo prekės aprašymas
Compact footprint for flexible implementation
The airFiber X device together with the airFiber X antenna can be used as a high quality point-to-point bridge (PtP) or backhaul. AirFiber X supports diagonal polarization ± 45° to increase interference immunity and use SNR. The compact design allows airFiber X to be mounted on Ubiquiti antenna without the need for additional tools.
Plug and Play function
AirFiber X antennas are designed for seamless integration with airFiber X radio systems.

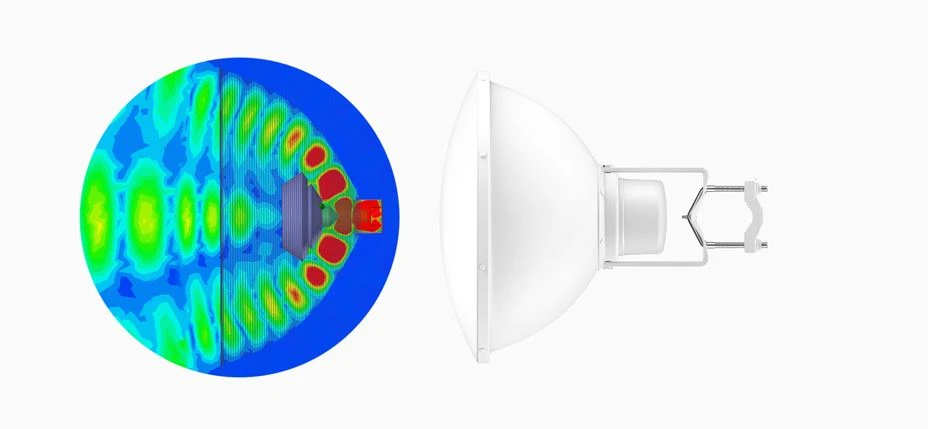

Advanced radio isolation design
Ubiquiti AIRFIBER DISH SLANT 45 AF-3G26-S45 is a special directional antenna in the form of a dish, operating in the frequency band 3GHz and with a gain 26dBi. Innovative design improves radio signal isolation, significantly reducing interference and providing excellent amplification for high performance multi-point networks.
| Antenna frequency | 3 GHz |
| Antenna type | Directional |
| Energy gain | 21dBi - 30dBi |
| Antenna gain level (max) | 26 |
| Application | Outdoor |
| Compatible with brand | Ubiquiti |
| Cross polarization isolation | >35 dB |
| Diameter | 65 |
| Frequency band | 3.3 - 3.8 |
| Front-to-back ratio | 33 dB |
| Harmonized System (HS) code | 85177100 |
| Horizontal beamwidth | 7° |
| Polarization | Double polarization (horizontal and vertical) |
| Polarization | Dual polarization |
| Purpose | Outdoor |
| Survival wind speed | 200 |
| Vertical beamwidth | 7° |
| VSWR | 1.4:1 |
| Weight | 9.8 |
