Prekės aprašymas

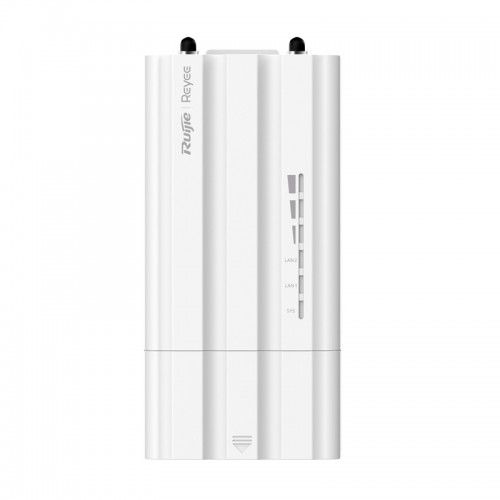

Antenna Ruijie RG-AirMetro 550G-B
Specifikacijos
SKU
U-4122626
Prekės kodas
RUIJIERGAIRMETRO550GB
Tiekėjo prekės aprašymas
- Type: Wireless antenna
- Model: Ruijie & Reyee RG-AirMetro550G-B
- Operating distance: 10 km
- Frequency: 5 GHz
- Speed: 867 Mbps
- Protection: IP55
- Compatible with additional antennas
- Ports: 2x 10/100/1000M ports, 1x 12V DC port
- Supports installation with an antenna
- Single station support: Up to 32 CPEs
- General
- Radio Design5 GHz dual-stream, 2.4 GHz single-stream, 2.4 GHz Band Yes, 5 GHz Band Yes
- Protocol and Standard5 GHz: 802.11ac/n/a, 2.4 GHz: 802.11b/g/n, Wi-Fi 4/5/6/7: Wi-Fi 5
- Spatial Streams5 GHz dual-stream, 2x2; 2.4 GHz single-stream
- MIMO2.4G Channel Width: Auto/20/40 MHz; 5G Channel Width: Auto/20/40/80 MHz
- Receiver Sensitivity11a: -89 dBm (6 Mbps), -80 dBm (24 Mbps), -76 dBm (36 Mbps), -71 dBm (54 Mbps); 11n: -83 dBm@MCS0, -65 dBm@MCS7, -83 dBm@MCS8, -65 dBm@MCS15; 11ac: -86 dBm (MCS0), -63 dBm (MCS9)
- Nominal Receive Sensitivity@20 MHz Channel: -91 dBm (MCS0) to -57 dBm (MCS9), @40 MHz Channel: -83 dBm (MCS0) to -57 dBm (MCS9), @80 MHz Channel: -76 dBm (MCS0) to -51 dBm (MCS9)
- Power Supply24 V passive PoE/12 V DC
- Local Power SupplyYes
- PoE OutNo
- Supported PoE StandardsNo (Note: Passive PoE input)
- Antenna ShapeN/A
- Antenna TypeBuilt-in antenna (horizontal/vertical): 90°/7°, 120°/10°, 360°/7°
- Hardware Button1 x reset button
- DC Power Connector SizeInner Diameter: 2.10 ± 0.05 mm (0.08 ± 0.002 in.), Outer Diameter: 5.50 ± 0.05 mm (0.22 ± 0.002 in.), Depth: 9 mm (0.35 in.)
- DC Voltage/Current12 V/1 A
- LEDs1 x system LED, 2 x port LEDs, 3 x signal strength LEDs
- Antenna Gain2.4 GHz: 3 dBi, 5 GHz: No
- Power Consumption＜12W
- IP RatingIP55
- Color–
- Operating Temperature–30°C to +65°C (–22ºF to +149ºF); publicity materials state –40°C to +80°C (–40°F to +176°F)
- Storage Temperature–40°C to +85°C (–22ºF to +185ºF)
- Operating Humidity5% to 95% RH (noncondensing)
- Storage Humidity5% to 95% RH (noncondensing)
- MTBF> 400,000 hours
- Working Distance15 km
- Bridging Performance200 Mbps/1 km (HT40), 180 Mbps/3 km (HT40), 100 Mbps/5 km (HT40) (Compared with competing products)
- RSSI (dBm)-60/1 km, -68/3 km, -75/5 km (Compared with competing products; antenna gain 13 dBi or higher)
- Throughput & Camera Limits (3 MP)35 Mbps/1 km, 30 Mbps/3 km, 16 Mbps/5 km
- Throughput & Camera Limits (4 to 5 MP)20 Mbps/1 km, 16 Mbps/3 km, 10 Mbps/5 km
- Throughput & Camera Limits (6 to 7 MP)15 Mbps/1 km, 12 Mbps/3 km, 6 Mbps/5 km
- Throughput & Camera Limits (7 to 8 MP)10 Mbps/1 km, 8 Mbps/3 km, 5 Mbps/5 km
- Management Radio2.412 GHz–2.472 GHz
- Number of PtMP Links32
- ESD ProtectionTolerance: ±24 kV Contact/Air
- MCS Modulation LevelsMCS0 (BPSK) to MCS9 (256QAM)
- Wi-Fi Protocols (2.4 GHz)Wi-Fi 4 (IEEE 802.11b/g/n)
- Wi-Fi Protocols (5 GHz)Wi-Fi 5 (IEEE 802.11ac)
- Wireless Data Rate867 Mbps (5 GHz)
- Frequency Bands2.4 GHz: 802.11b/g/n: 2.4000 GHz to 2.483 GHz; 5 GHz: 802.11a/n/ac: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz (Note: Country-specific restrictions apply)
- Max. Transmit Power2.4 GHz: 20 dBm, 5 GHz: 26 dBm
- Surge ProtectionCommon mode: ±6 kV, Differential mode: ±2 kV
- Dimensions (W x D x H)200 mm x 98.5 mm x 29 mm (7.87 in. x 3.88 in. x 1.14 in.) (without bracket)
- Weight0.68 kg
- Number of Fixed LAN Ports2
- Max. LAN Port Rate1000 Mbps
- Number of 10/100/1000BASE-T Ports2
- ResetYes
- Status LEDYes
- CertificationCE
- Operating ModeBase Station/CPE
- Channel Spacing20 MHz
- TDMAFixed Mode/Flexible Mode
- WLAN SecurityWPA2-PSK
- ManagementSSID @Ruijie-bxxxx, SSID Hiding Yes, Spectrum Scan Yes, Antenna Alignment Yes, One-Touch Pairing Yes, WMM Yes, Storm Control Yes, VLAN Packet Transmit Yes, DHCP Server Yes, DHCP Client Yes
- Network DiagnosticsPing/TraceRoute/DNS
- Time & DateYes
- Firmware UpgradeYes
- Backup/RestoreYes
- Cloud ManagementYes
- Power ConfigurationYes
- Country/Region CodeYes
- Remote RestartYes
- SONSelf-organizing Networking with Bridges
- SNMPYes
- Link AggregationNo
- Throughput & Camera LimitsSee reference performance recommendation table
- PingYes
- TracerouteYes
- AI HeatmapYes
Tiekėjo specifikacijos
Product code
RUIJIERGAIRMETRO550GB
Category
Ante
Supplier's product code
RUIJIERGAIRMETRO550GB
Product ID
U-4122626
