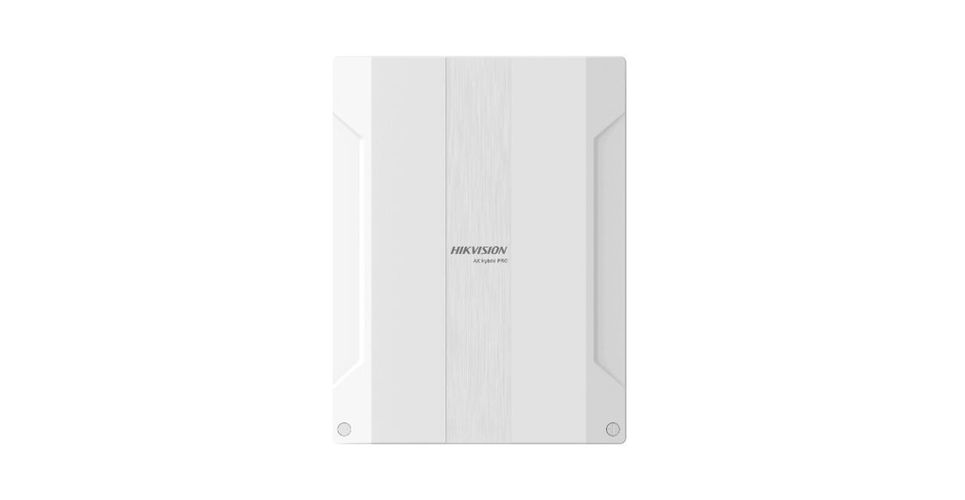

AX Hybrid Pro control panel Hikvision DS-PHA64-LP
Pristatymo terminai
Prekė užsakoma iš tiekėjo sandėlio. Jei tiekėjas šios prekės pristatyti iki nurodytos datos negalės, informuosime jus el. paštu.
 Yra | Tiekėjo sandėlis |
Pristatymas į namus
Pristatymas į namus
Perdavę prekes kurjeriui, informuosime Jus el. paštu.
Virš 30,00 € (Užsakymams iki 1000 kg) | Nemokamai |
Iki 30,00 € (Užsakymams iki 3 kg) | 2,99 € |
Iki 30,00 € (Užsakymams iki 1000 kg) | 3,59 € |
Pristatymas į paštomatą
Pristatymas į paštomatą
1,99 €
Tiekėjo prekės aprašymas
- Hybrid system: 8 on-board zones and 56 wired/wireless zones expandable；4 on-board outputs（2 relay outputs & 2 I/O outputs） and 60 wired/wireless outputs expandable
- Dual-path communication of alarm events and other signals over LAN, PSTN, Wi-Fi, GPRS or 3G/4G utilizing a main and backup channel with configurable priority
- 4-ch onboard IP Camera video verification, supports video recording (5s pre-alarm + 2s post-alarm, or 2s pre-alarm + 5s post-alarm) for verification to the alarm receiving email or mobile client
- Supports arming/disarming via keypad, keyfob, mobile client, iVMS-4200, SMS and tag
- Pushes alarm notification via messages and Hik-Connect
- Supports ISAPI, Cloud P2P, ISUP, CSV-IP and DC-09 protocol
- Supports 1 Speed-X BUS
- Software features
- Zones64（8 On-board zones, max 8 wired PIRCAM）
- Area32
- User
Installer: 1
Administrator: 1
Operator: 62
- SMS notificationSupport (with GPRS/3G/4G module)
- Onboard video clips4
- ARC protocol
ISAPI: Supports iVMS-4200 client software and web client
Cloud P2P: Supports cloud P2P privacy protocol
DC-09: ARC accessible（ADM-CID/SIA-DCS ）
CSV-IP: Supports CSV-IP
ISUP: Supports ISUP 5.0
- Programming toolsWeb/iVMS-4200/Hik-ProConnect/Keypad
- Firmware upgradeWeb/iVMS-4200/Hik-ProConnect/Hik-ProConnect
- End of Line ResistanceSupport 2.2K，3.3K，5.6K，8.2K
- Hardware features
- Alarm input64（Including 8 on-board zones）
- Alarm output64（Including 2 on-board relay outputs and 2 on-board I/O outputs）
- Power Output12V 1.5A
- 3/4G on boardOptional
- GPRS on boardOptional
- Wi-Fi 802.11b/g/n (2.4GHz)
- Bus1 Speed-X bus
- Sounder output1 Wired on-board sounder output
- Tamper-Proof
1 switch to detect removal from mounting
1 switch to detect front cover open
- Netowrk interface1 RJ45 10M/100M Ethernet interface
- Electrical characteristics
- Power interface100 to 240 VAC（on-board power transformer）
- Power Consumption
1. 220V power supply
① With an alarm: 2A, 32W
② Without an alarm: 250mA, 4W
2. 13.5V battery supply
① With an alarm: 1.7A, 25W
② Without an alarm: 200mA, 2.7W
- Battery typeLead acid battery（12V 7Ah, battery is not included by default）
- Storage temperature-10°C to 40°C
- Battery life spanUp to 36hrs
- Display
- Indicator
4 On-board LEDs
1. 1 AC power LED indicator（Green）
2. 1 System status LED indicator（Green/Red）
3. 1 PSTN status LED indicator（Green/Red）
4. 1 Mobile communication status LED indicator（Green/Red）
- General
- Operation temperature -10℃ to 40℃
- Operation humidity10% to 90%
- Shell materialPlastic
- ColorWhite
- Dimension(WxHxD)261 mm × 199 mm × 86.4 mm
- 997 g
- Device management
- Tag64
- Keyfob64
- Keypad8
- Wireless sounder16
