Coaxial Cable CB113UV 250m, EMOS
Prekės kodas: S5266
Pristatymo terminai
2024-07-23 Numatomas pristatymas užsakius dabar
Prekė užsakoma iš tiekėjo sandėlio. Jei tiekėjas šios prekės pristatyti iki nurodytos datos negalės, informuosime jus el. paštu.
 Yra | Tiekėjo sandėlis |
Pristatymas į namus
Pristatymas į namus
Perdavę prekes kurjeriui, informuosime Jus el. paštu.
Virš 30,00 € (Užsakymams iki 1000 kg) | Nemokamai |
Iki 30,00 € (Užsakymams iki 3 kg) | 2,99 € |
Iki 30,00 € (Užsakymams iki 1000 kg) | 3,59 € |
Pristatymas į paštomatą
Pristatymas į paštomatą
Perdavę prekes kurjeriui, informuosime Jus el. paštu. Užsakymai virš 30.00 € pristatomi nemokamai.
1,99 €
Tiekėjo prekės aprašymas
Product description

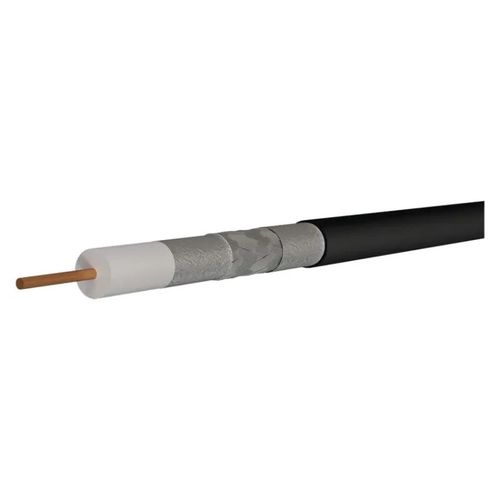

Highest quality coaxial cable with central conductor made of pure bare copper, with TRISHIELD triple shielding made of tin-plated CuSn copper. The cable is designed for demanding applications transmitting CCTV, TV or SAT signal.
Thanks to the materials used for the central conductor and braiding, the cable is extremely resistant to weather conditions, humidity and corrosion. UV resistant cable for outdoor installation.
Tiekėjo specifikacijos
Product code
S5266
APE = air dielectric
no
capacity (pF/m)
52
coaxial cable type
CB113UV
color cable sheath > Cable sheath color
black
colour of insulation of power conductors
not stated
construction of power conductors
not stated
cross-section of power conductors
not stated
dangerous substances
none
diameter of cable sheath
7,05 mm
diameter of the inner conductor
1.13 mm
dielectric type, diameter
FPE 4.8 mm
factor of shortening
0.85
FPE = Foam dielectric
yes
impedance
75 Ohm
insulation of power conductors
not stated
insulation resistance between the cores at 20 °C (MOhm/km)
1 000
intended use
outdoor installation, terciary distribution
material of the cable jacket
PVC UV resistant
material of the inner conductor
copper (Cu)
material of the shielding
tinned cooper (CuSn)
max. attenuation at 20 °C (dB/100 m) 1 000 MHz
19.3
max. attenuation at 20 °C (dB/100 m) 10 MHz
2.2
max. attenuation at 20 °C (dB/100 m) 100 MHz
5.8
max. attenuation at 20 °C (dB/100 m) 2 000 MHz
29.5
max. attenuation at 20 °C (dB/100 m) 450 MHz
12.5
max. attenuation at 20 °C (dB/100 m) 650 MHz
15.3
max. attenuation at 20 °C (dB/100 m) 860 MHz
18.5
max. DC resistance at 20 °C (Ohm/km) - inner core
18.5
max. DC resistance at 20 °C (Ohm/km) - outer core
38.5
min. bend radius single/multiple
35/70 mm
min. return loss at 20 °C (dB) 10 to 300 MHz
30
min. return loss at 20 °C (dB) 600 to 900 MHz
23
min. return loss at 20°C (dB) 300 to 600 MHz
25
min. shielding attenuation (dB) 10 ~ 800 MHz
>95
mounting temperature
+5 °C to +60 °C
number of braiding wires
144× 0,12 mm
number of shieldings
3
packaging
250 m, reel box
PE = polyethylene dielectric
not stated
PES = layer film
no
reaction to the fire
Eca
recommended types of connectors - F pressing
*K7220
recommended types of connectors - F screwing
*K7351
shielding diameter
144× 0,12 mm2
shielding I. foil
1× Al/PES
shielding II. foil
Al/PES spiral
shielding protection
>84 %
storage temperature
-20 °C to +75 °C
suitable for outdoor use
yes
type of packaging - labeled yardage > Type of packaging - labeled meters
1–250 m
type of packaging - length
250 m
type of packaging - type of coil
PVC reel in paper box
UV resistant
yes
warranty period
5 years
weight (kg/km)
41.5
Brand
EMOS
Supplier's product code
S5266
Product ID
U-2337324
