Coaxial Cable CB115 100m, EMOS

Prekės kodas: S5272
Nuotrauka yra tik iliustracija. Tikslias produkto specifikacijas rasite aprašyme.
EMOS
Prekinis ženklas
Daugiau panašių prekių

Kainų ribos

KiekisKaina su PVM (vnt.)
1+
€0.62€0.62
didmeninis

Min. kiekis: 100

Kartotinis: 100

Iš viso:

€62.00
2025-03-07 Numatomas pristatymas užsakius dabar

Pristatymo terminai

2025-03-07 Numatomas pristatymas užsakius dabar

Prekė užsakoma iš tiekėjo sandėlio. Jei tiekėjas šios prekės pristatyti iki nurodytos datos negalės, informuosime jus el. paštu.

YraYra

Tiekėjo sandėlis

home delivery

Pristatymas į namus

Pristatymas į namus

Perdavę prekes kurjeriui, informuosime Jus el. paštu.

Virš 50,00 €

(Užsakymams iki 1000 kg)

Nemokamai

Iki 50,00 €

(Užsakymams iki 3 kg)

3,49 €

Iki 50,00 €

(Užsakymams iki 1000 kg)

4,99 €

Shipping parcel

Pristatymas į paštomatą

Pristatymas į paštomatą

Perdavę prekes kurjeriui, informuosime Jus el. paštu. Užsakymai virš 50.00 € pristatomi nemokamai.

2,39 €

Prekės aprašymas

EMOS
Coaxial Cable CB115 100m, EMOS

Specifikacijos

SKU
U-2337328
Barkodai
8592920041000
Prekinis ženklas
Prekės kodas
S5272

Tiekėjo prekės aprašymas

Product description

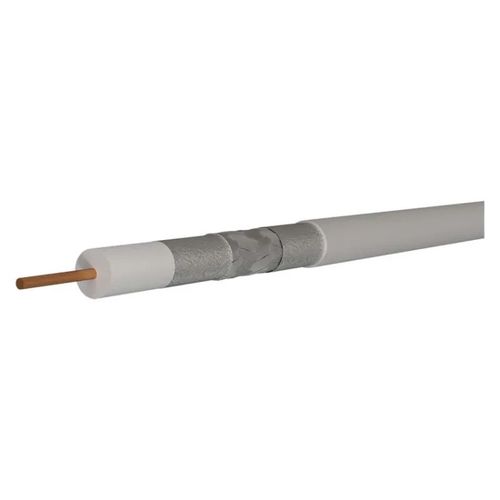

Type RG6 coaxial cable of the highest quality with central conductor made of pure bare copper, and TRISHIELD triple shielding, white colour, CLASS A. The cable is designed for demanding applications transmitting CCTV, TV or SAT signal.
Since the cable's shielding has excellent effectiveness (= very low radiation), the cable can be used to conduct very powerful signal, thus effectively increasing the distance across which it can transfer signal.
The high-quality shielding eliminates problems with convergence of multiple cables across great distances.

Tiekėjo specifikacijos

Product ID
U-2337328
Product code
S5272
Brand
EMOS
Supplier's product code
S5272
APE = air dielectric
not stated
capacity (pF/m)
52
coaxial cable type
CB115/RG6 CU TRISHIELD
color cable sheath > Cable sheath color
white
colour of insulation of power conductors
not stated
construction of power conductors
not stated
cross-section of power conductors
not stated
dangerous substances
none
diameter of cable sheath
6.8 mm
diameter of the inner conductor
1.02 mm
dielectric type, diameter
FPE 4.8 mm
factor of shortening
0.82
FPE = Foam dielectric
not stated
impedance
75 Ohm
insulation of power conductors
not stated
insulation resistance between the cores at 20 °C (MOhm/km)
500
intended use
indoor installation, interference resistant, CLASS A
material of the cable jacket
PVC
material of the inner conductor
copper (Cu)
material of the shielding
aluminium (Al)
max. attenuation at 20 °C (dB/100 m) 1 000 MHz
21,2
max. attenuation at 20 °C (dB/100 m) 10 MHz
2
max. attenuation at 20 °C (dB/100 m) 100 MHz
7
max. attenuation at 20 °C (dB/100 m) 2 000 MHz
27,2
max. attenuation at 20 °C (dB/100 m) 450 MHz
14
max. attenuation at 20 °C (dB/100 m) 650 MHz
17.5
max. attenuation at 20 °C (dB/100 m) 860 MHz
20,6
max. DC resistance at 20 °C (Ohm/km) - inner core
19,5
max. DC resistance at 20 °C (Ohm/km) - outer core
48.5
min. bend radius single/multiple
35/70 mm
min. return loss at 20 °C (dB) 10 to 300 MHz
not stated
min. return loss at 20 °C (dB) 600 to 900 MHz
25
min. return loss at 20°C (dB) 300 to 600 MHz
30
min. shielding attenuation (dB) 10 ~ 800 MHz
>100
mounting temperature
+5 °C to +60 °C
number of braiding wires
96× 0.12 mm
number of shieldings
3
packaging
100 m, reel
PE = polyethylene dielectric
yes
PES = layer film
not stated
reaction to the fire
Eca
recommended types of connectors - F pressing
not stated
recommended types of connectors - F screwing
*K7351
shielding diameter
96× 0.12 mm²
shielding I. foil
1× Al/PET
shielding II. foil
Al/PET
shielding protection
90 %
storage temperature
-20 °C to +75 °C
suitable for outdoor use
no
type of packaging - labeled yardage > Type of packaging - labeled meters
1–100 m
type of packaging - length
100 m
type of packaging - type of coil
paper
UV resistant
no
warranty period
5 years
weight (kg/km)
not stated
