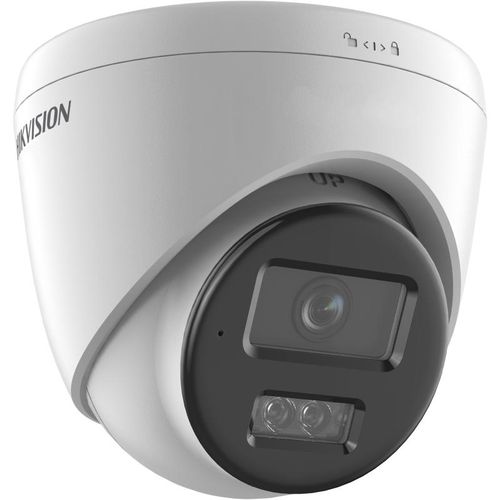

Hikvision dome DS-2CD1363G2-LIU F2.8 (white, 6 MP, 30 m. IR, 30 m. LED, hybrid light)

• MP (MegaPixel): 6 MP
• Lens: 2.8 mm, horizontal FOV: 105°
• Technology: Hybrid Light
• Integrated microphone: Yes
• Night light: 30 m. IR; 30 m. LED
• MicroSD storage: No
• Operating Conditions: -30 °C to 60 °C
• Protection: IP67
• Video Compression: H.265/H.264/H.264+/H.265+
• WiFi: No
• Bracket: DS-1280ZJ-S
• Outdoor/Indoor: Outdoor

• Camera
• Image Sensor 1/2.4" Progressive Scan CMOS
• Max. Resolution 3200 × 1800
• Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time 1/3 s to 1/100,000 s
• Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

• Lens
• Lens Type Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
• Lens Mount M12
• Iris Type Fixed
• Aperture F1.6

• DORI
• DORI 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

• Illuminator
• Supplement Light Type IR,White Light
• Supplement Light Range Up to 30 m
• Smart Supplement Light Yes
• IR Wavelength 850 nm

• Video
• Main Stream 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate 32 Kbps to 16 Mbps
• H.264 Type Baseline Profile,Main Profile,High Profile
• H.265 Type Main Profile
• Bit Rate Control CBR,VBR
• Region of Interest (ROI) 1 fixed region for main stream

• Audio
• Audio Type Mono sound
• Environment Noise Filtering Yes
• Audio Sampling Rate 8 kHz/16 kHz
• Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate 64 Kbps (G.711ulaw)/64 Kbps (G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

• Network
• Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• Simultaneous Live View Up to 6 channels
• API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
• Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• User/Host Up to 32 users3 user levels: administrator, operator, and user
• Client iVMS-4200,Hik-Connect
• Web Browser Plug-in required live view: IE 10, IE 11,Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Wide Dynamic Range (WDR) 120 dB
• SNR ≥ 52 dB
• Day/Night Switch Day,Night,Auto,Schedule
• Image Enhancement BLC,HLC,3D DNR
• Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Privacy Mask 4 programmable polygon privacy masks

• Interface
• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in Microphone Yes
• Reset Key -F: Yes

• Event
• Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Linkage Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

• General
• Power 12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 6.5 W
• Material Metal & Plastic
• Dimension Ø110 mm × 89.2 mm (Ø4.3" × 3.5")
• Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• Weight Approx. 340 g (0.7 lb.)
• With Package Weight Approx. 560 g (1.2 lb.)
• Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language English, Ukrainian
• General Function Heartbeat,anti-banding,mirror,password protection,password reset via email

• Approval
• EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
• Safety UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
• Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
• Protection IP67: IEC 60529-2013
