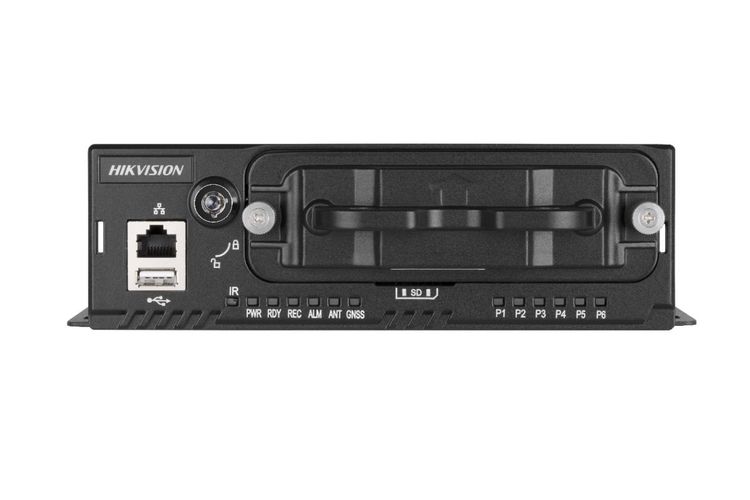

Hikvision mobile MVR AE-MN5043(RJ45)
Pristatymo terminai
Prekė užsakoma iš tiekėjo sandėlio. Jei tiekėjas šios prekės pristatyti iki nurodytos datos negalės, informuosime jus el. paštu.
 Yra | Tiekėjo sandėlis |
Pristatymas į namus
Pristatymas į namus
Perdavę prekes kurjeriui, informuosime Jus el. paštu.
Virš 50,00 € (Užsakymams iki 1000 kg) | Nemokamai |
Iki 50,00 € (Užsakymams iki 3 kg) | 3,49 € |
Iki 50,00 € (Užsakymams iki 1000 kg) | 4,99 € |
Pristatymas į paštomatą
Pristatymas į paštomatą
2,39 €
Tiekėjo prekės aprašymas
- Supports 4-ch 2 MP IP cameras via PoE interfaces
- Efficient H.265 compression technology
- Supports up to 2 × 2.5 inch HDDs/SSDs (up to 2 TB for each), 1 × SD (up to 256 GB)
- Supports 3G/4G and Wi-Fi modules for communication
- Supports GPS positioning
- Video/Audio Input
- Two-way Audio4-ch connected via PoE interfaces and 4-ch extendable via PoE switch.
- IP Camera1, integrated in EXT.DEV interface
- Video/Audio Output
- Audio Output1, integrated in EXT.DEV interface
- Video OutputMain output: 1, integrated in EXT.DEV interface. VGA: 1
- Encoding/Decoding Parameters
- Video CompressionH.265/H.264
- Audio CompressionG.711a/G.711u/G.722.1/G.726
- Audio Bit Rate16 Kbps
- Stream TypeVideo, video & audio
- Dual StreamSupported
- Frame RatePAL: 1 to 25 fps; NTSC: 1 to 30 fps
- Encoding Resolution
Main stream: 1080P/720P/WD1/4CIF
Sub-stream: 720P/WD1/4CIF/2CIF/CIF
- Wireless Network
- Wi-Fi
WI58 model: 2 × 5.8 G Wi-Fi SMA antenna
(Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC module.)
- 3G/4G Dialing1 × 4G card slot, 1 × FAKRA antenna
- Storage
- SD Card Storage1 × SD card, up to 256 GB（not for baseline. Note the SD card capacity when ordering）
- HDD/SDD2 × 2.5 inch SATA HDD/SSD, up to 2 TB for HDD, up to 4 TB for SSD
- Auxiliary Interface
- Network Interface
Front panel :1 ×10M/100M RJ45
Rear panel: 1 × 10M/100M 6-pin aviation connector
Note：The front and rear network ports are at different network segments and the 6-pin aviation network cable female head to RJ45 is optional.
- Alarm Input4 high/low level signal inputs, 1 pulse signal input, 1 button input
- Alarm Output2 relay signal outputs
- Sensor-in4 high/low level signal inputs
- Serial Port1 × RS-232(harness is optional), 1 × RS-422 (integrated in EXT.DEV interface)
- Positioning
- GNSS (Global Navigation Satellite System)GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna
- Sensor
- G-SensorBuilt-in
- General
- Power Supply+9 to +32 VDC
- Product Dimension206 mm × 225.4 mm × 60.1 mm (8.1" × 8.87" × 2.37")
- Power Consumption
Standby: ≤ 0.5 W
Full load: ≤ 45 W
Note: Without peripheral and storage media ≤ 20 W
- Operating Temperature-20°C to +60°C (-4°F to +140°F)
- Operating Humidity10% to 95% (non-condensing)
- Operation MethodMouse, IR remote control, Web control, and touchscreen
- CertificationCE/FCC/Emark/EN50155/CB/EN45545/ROHS 2.0/ISO-7637-2
- Weight (Without Storage Media)1.66 kg (3.67 lb.)
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 50498: 2010); CE-EMC (EN 55032: 2015+A1:2020, EN 50130-4: 2011+A1:2014; EN IEC 61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019+A2:2021)
- SafetyCB (IEC 62368-1:2018); CE-LVD (EN IEC 62368-1:2020 + A11:2020 )
- EnvironmentCE-RoHS (2011/65/EU and amendment 2015/863/EU)
- Automotive and RailwayEN50155(EN 50155:2021 clause 13, EN 50121-3-2:2016+A1:2019, EN45545-2:2020, EN50153:2014+A1:2017+A2:2020, BS EN ISO:13732-1:2008,ISO 13732-1:2006;EN61373:2010); EN45545 (EN 45545-2:2020 hl3); E-MARK (ECE R10)
