Insulation Resistance Tester Kit (5kV) with IR3000FC, Fluke

Insulation Resistance Tester Kit (5kV) with IR3000FC, Fluke

Evaluate the trends, eliminate the doubt The Fluke 1550C insulation resistance testing kit offers digital insulation testing up to 5 kV. And with the Fluke Connect wireless app, you can perform tests and collect data from a safe distance. Remote operation lets you spend as little time as possible in potentially hazardous zones. Real-time trending shows a live graph on your phone, rather than a hard-to-read set of changing values. And you can create reports quickly, simply using drag-and-drop – something you won’t find anywhere else. The 1550C Kit can now conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class, 3 year warranty and CAT IV 600 V safety rating. Other useful features: Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup Guard system eliminates the effect of surface leakage current on high-resistance measurements Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V CAT III 1000 V, CAT IV 600 V safety rating Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall Long battery life gives the user over 750 tests between charges Large digital/analog LCD for easy viewing Capacitance and leakage current measurement Ramp function for breakdown testing Resistance measurements up to 2 TΩ Timer settings up to 99 minutes for timed tests 3-year warranty

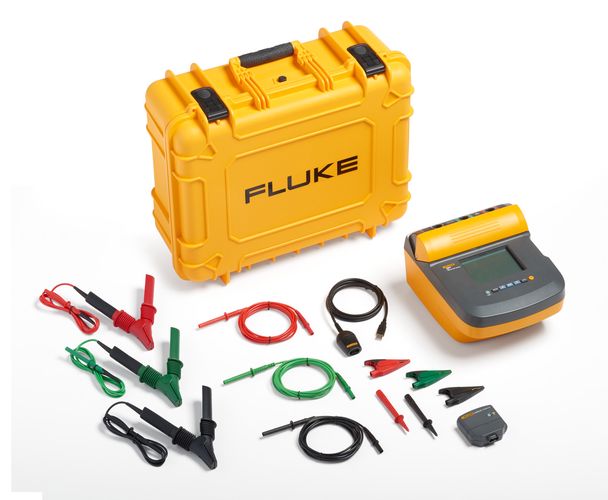

Box Contents:

MAIN 1550 UNIT, IR3000 Unit, HARD CASE,TLK1550 INTEGRAL TEST LEAD &10 KV CLAMP, 1 SET TESTLEADS, LINE CORD, CABLE ADAPTER, 1550/1555 Quick Reference Guide, IR3000 Quick Reference Guide, Safety Guide 1550/1555, Safety Guide IR 3000
