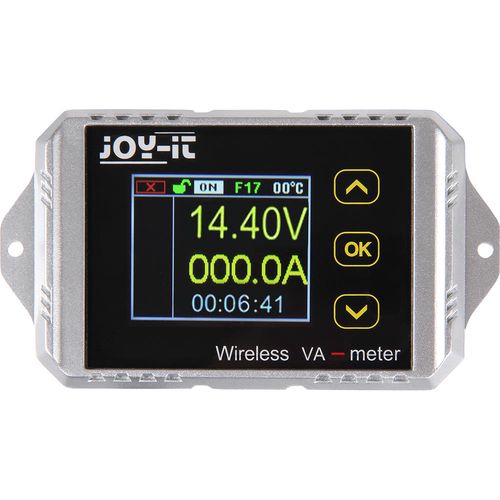

Joy-iT VAX1030 Multifunction measuring instrument

The VAX-1030 multifunction meter can measure voltage, current, work, power, temperature, real-time capacity and charge and discharge times in DC circuits.
The display can be connected to the measuring module with a micro-USB cable or via a wireless radio connection.
A total of 26 communication channels enable several instruments to communicate with the measuring instrument simultaneously.
The integrated relay provides overvoltage and undervoltage protection as well as overcurrent protection.
In addition, the circuit can be interrupted manually.

Technical data:

Voltage range: 0 - 100 V

Voltage resolution:0.01 V

Voltage accuracy: ± 2% - 3 Digit

Current range: 1 - 30 A

Current resolution: 0.01 A

Current accuracy: ± 5% - 10 Digit

Power range: 0 - 200 kW

Power resolution: 0.001 W

Working measuring range: 0 - 4000 kWh

Working measuring resolution: 0.001 Wh

Load display range: 0 - 2000 kAh

Load display resolution: 0.001 Ah

Temperature range: -20 - 120°C

Time range: 0 - 99 days

Time resolution: 1 seconds

Negative overcurrent protection: 0 - -30 A

Positive overcurrent protection: 0 - 30 A

Overvoltage protection (OVP ): 0 - 100 V

Undervoltage protection ( LVP ): 0 - 100 V

Protection delay time: 0 - 10 seconds

Relays: Internal

Communication channels: A - Z ( 26 channels )

Address range: 01 - 99

Communication range: Up to 10mSampling Rate ( Display ): 5 per seconds

Power ( Display ): 0.5 W

Power ( Module ): 0.4 W

Additional features: charge timing,discharge timing, temperature measures, wireless display

Dimensions ( Display ): 1.8" - 98 x 54 x 20.8 mm
