MikroTik LHG 5 | CPE | RBLHG5KIT, 3-Pack, 5GHz, 1x RJ45 100Mb/s, 24,5dBi, MIKROTIK
Pristatymo terminai
Prekė užsakoma iš tiekėjo sandėlio. Jei tiekėjas šios prekės pristatyti iki nurodytos datos negalės, informuosime jus el. paštu.
 Yra | Tiekėjo sandėlis |
Pristatymas į namus
Pristatymas į namus
Perdavę prekes kurjeriui, informuosime Jus el. paštu.
Virš 50,00 € (Užsakymams iki 1000 kg) | Nemokamai |
Iki 50,00 € (Užsakymams iki 3 kg) | 3,49 € |
Iki 50,00 € (Užsakymams iki 1000 kg) | 4,99 € |
Pristatymas į paštomatą
Pristatymas į paštomatą
2,39 €
Tiekėjo prekės aprašymas

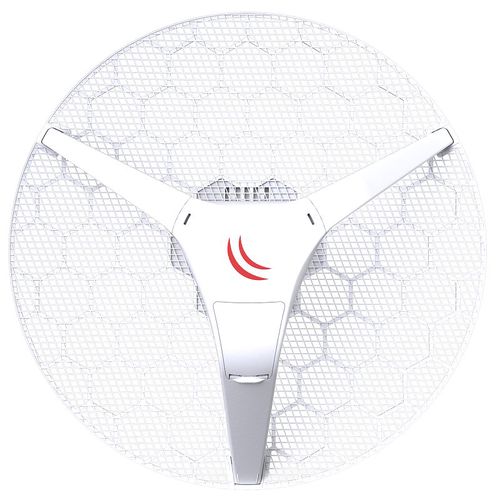

Mikrotik RouterBOARD RBLHG-5N LHG 5
Mikrotik RouterBOARD RBLHG-5N LHG 5 is an antenna with integrated radio module, equipped with an antenna with gain 24,5dBi. The device operates in 5GHz band with transmitting power 25dBm. The design of the device allows for high wind resistance up to 205 km/h. Designed for point-to-point connections or as a CPE client device over longer distances and supports Nv2 TDMA protocol.
Ideal design
The grid design provides wind protection and the fact that the antenna element is built into the wireless unit means no loss of cables.
Ideally suited as a client device
The main beam is 7° wide, the offered product is designed for point-to-point connections or as a customer in point-to-multipoint connections over long distances. An adapter is included in the set, thanks to which it is possible to tilt the antenna at an angle of 5° (relative to its original position).
Wireless network specifications
The composition of the set: 3x
The composition of the set: 3x
- MicroTik RouterBoard LHG 5
- 24 V, 0.38 A power supply
- PoE Injector
- 2 metal bands
- Screws and Grips (K-LHG kit)
Key features :
Key features :
- Antenna with 24.5 dBi gain
- Transmission power 25 dBm
- Operation in the 5 GHz band
- high wind resistance ( 205 km/h )
- Point to point or point-to-multipoint connections as a client device
- Operation at -40 C
| LAN standard | Fast Ethernet 10/100Mb/s |
| Maximum wireless transmission speed | 300 Mb/s |
| Number of LAN ports | 1x 10/100BaseTX (RJ45) |
| Operating frequency | 5 GHz |
| Wireless network standards | IEEE 802.11a |
| Wireless network standards | IEEE 802.11n |
| Antenna gain | 21dBi - 30dBi |
| Antenna gain level (max) | 24.5 |
| Built-in processor | Yes |
| Cabling technology | 10/100Base-T(X) |
| CPU frequency | 600 MHz |
| Device type | Client device |
| Diameter | 39.1 |
| Flash memory | 16 |
| Frequency band | 5 |
| Gain | 24.5 |
| Height | 222 |
| Input voltage | PoE 11 - 30 |
| Internal memory | 64 |
| Isolation | 20 |
| Manual | Yes |
| Maximum cable loss with connectors | 10 |
| Networking standards | IEEE 802.11a,IEEE 802.11n |
| Numbers of pieces in the package | 3-pack |
| Operating relative humidity (H-H) | 5 - 95 |
| Operating temperature (T-T) | -40 - 70 |
| Package depth | 450 |
| Package height | 145 |
| Package weight | 1.98 |
| Package width | 450 |
| Polarization | Dual polarization |
| Power consumption (max) | 6 |
| Power source type | AC, DC |
| Processor frequency | 600 |
| Product colour | White |
| Quantity per pack | 3 |
| RAM memory | 64MB |
| Sidelobes level | 25 |
| Survival wind speed | 205 |
| Type of device power supply | Passive PoE |
| Voltage Standing Wave Ratio (VSWR) | 1.925:1 |
| Weight | 560 |
| Working temperature | -40°C to +70°C |
