MikroTik RB5009UG+S+IN | Router | 7x RJ45 1000Mb/s, 1x RJ45 2.5Gb/s, 1x SFP+, 1x USB 3.0, MIKROTIK
Pristatymo terminai
Prekė užsakoma iš tiekėjo sandėlio. Jei tiekėjas šios prekės pristatyti iki nurodytos datos negalės, informuosime jus el. paštu.
 Yra | Tiekėjo sandėlis |
Pristatymas į namus
Pristatymas į namus
Perdavę prekes kurjeriui, informuosime Jus el. paštu.
Virš 30,00 € (Užsakymams iki 1000 kg) | Nemokamai |
Iki 30,00 € (Užsakymams iki 3 kg) | 2,99 € |
Iki 30,00 € (Užsakymams iki 1000 kg) | 3,59 € |
Pristatymas į paštomatą
Pristatymas į paštomatą
1,99 €
Tiekėjo prekės aprašymas

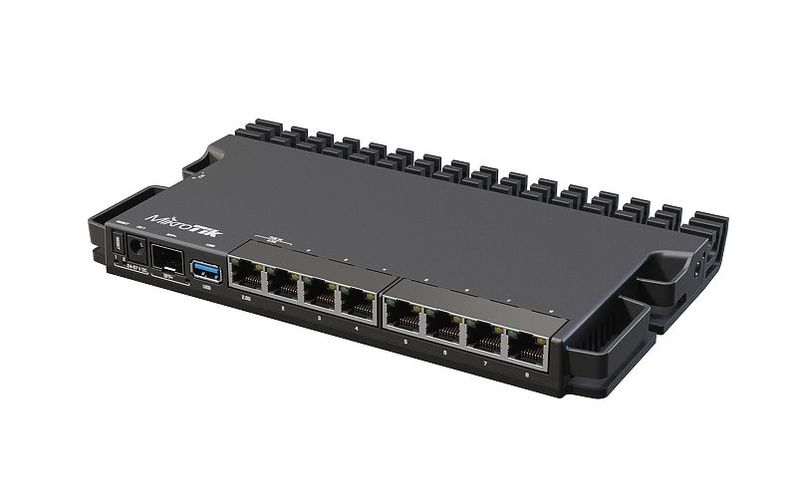

MIKROTIK RB5009 S IN: The ultimate rugged home lab router
TheRB5009UG S IN is the perfect router for the home lab: compact, powerful, with multiple power options and efficient cooling. The RB5009 has all this and more!
There are 9 wired ports and a full-size USB 3.0 port on the board. Seven of the ports are Gigabit Ethernet, another is 2.5 Gigabit Ethernet, and the last is a 10G SFP . All ports are connected to a high-performance Marvell Amethyst family switch with a 10Gbps full-duplex line leading to a 1.4GHz quad-core Marvell Armada ARMv8 processor. Both the processor and the switch are located on the bottom of the board - so the case acts as a powerful heat sink!
The RB5009UG S IN can be powered in 3 different ways:
The boards are equipped with 1GB of DDR4 RAM and 1GB of NAND. This combination of ports and components, compared to our other products in a similar chassis, provides nearly double the performance in high CPU load configurations.
With a simple mounting accessory kit, up to four of these routers can be mounted in a single 1U rackmount chassis.
| Number of LAN ports | 7x [10/100/1000M (RJ45)] |
| Number of LAN ports | 1x [2,5G (RJ45)] |
| Number of LAN ports | 1x [10G (SFP+)] |
| Additional connectors / interfaces | 1x USB |
| Certification | CE, EAC, ROHS |
| CPU frequency | 1,4 GHz |
| DC-in jack | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 |
| Ethernet WAN | Yes |
| Gigabit Ethernet (copper) ports quantity | 7 |
| Harmonized System (HS) code | 85176990 |
| Installed SFP+ modules quantity | 1 |
| Mean time between failures (MTBF) | 200000 |
| Mobile network generation | No |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Number of CPU cores | 4 |
| PoE input | Yes |
| Power consumption (typical) | 20 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 1 |
| Power source type | DC |
| Product colour | Black |
| RAM memory | 1GB |
| Storage temperature (T-T) | -40 - 60 |
| Sustainability certificates | RoHS |
| Type of case | Rack (1U) |
| Type of device power supply | PoE 802.3af/at |
| Type of device power supply | Power supply |
| USB ports quantity | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
