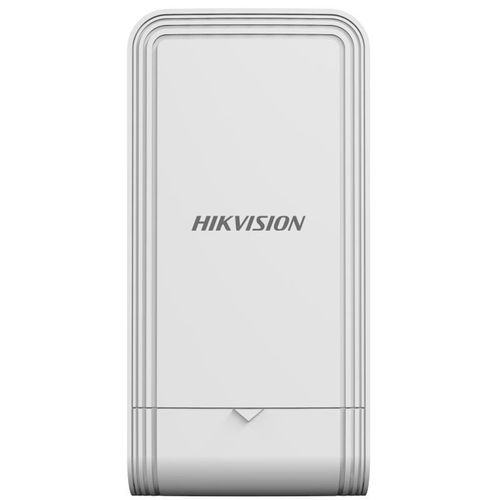

Wireless outdoor CPE Hikvision DS-3WF02C-5AC/O(V2)
Prekės kodas: CPEDS3WF02C5ACOV2
Pristatymo terminai
2024-10-08 Numatomas pristatymas užsakius dabar
Prekė užsakoma iš tiekėjo sandėlio. Jei tiekėjas šios prekės pristatyti iki nurodytos datos negalės, informuosime jus el. paštu.
 Yra | Tiekėjo sandėlis |
Pristatymas į namus
Pristatymas į namus
Perdavę prekes kurjeriui, informuosime Jus el. paštu.
Virš 50,00 € (Užsakymams iki 1000 kg) | Nemokamai |
Iki 50,00 € (Užsakymams iki 3 kg) | 3,49 € |
Iki 50,00 € (Užsakymams iki 1000 kg) | 4,99 € |
Pristatymas į paštomatą
Pristatymas į paštomatą
Perdavę prekes kurjeriui, informuosime Jus el. paštu. Užsakymai virš 50.00 € pristatomi nemokamai.
2,39 €
Tiekėjo prekės aprašymas
- Type: Wireless Outdoor CPE
- Model: Hik-vision DS-3WF02C-5AC/O(V2)
- Frequency: 5GHz
- Speed: 300Mbps
- Distance: 5km
- Antenna type: Integrated 10 dBi 2x2 MIMO antennas
- General
- Product Dimensions (W × H × D)92 mm × 187 mm × 58 mm (3.62'' × 7.36'' × 2.28'')
- Package Dimensions (W × H × D)132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58")
- Net Weight0.307 kg (0.677 lb)
- Gross Weight0.807 kg (1.779 lb)
- Packing ListWireless Bridge × 1,Power Adapter (12 VDC, 1 A) × 1,Binding Tape × 2,Quick Start Guide ×1
- Packing MethodSingle unit packing
- Working Temperature-30 °C to 70 °C (-22 °F to 158 °F)
- Working Humidity5% to 95% (no condensation)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Storage Humidity5% to 95% (no condensation)
- Installation ModePole Mounting
- Ingress ProtectionIP55
- Power Consumption2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W
- Wireless Parameter
- Throughput RatePoint to point: Support up to 4-ch IPC (2MP) in Max. 5 KM distance and Max. 20 Mbps bandwidth,Point to point: Support up to 40-ch IPC (2MP) in Max. 1 KM distance and Max. 200 Mbps bandwidth,Point to multi-point: Support up to 16-ch IPC (2MP) in Max. 1 KM distance and Max. 80 Mbps bandwidth within 30°, Max. 1 to 8 PTMP connection
- Max. Transmission Rate of Air Interface≤ 867 Mbps
- Wireless StandardIEEE 802.11/a/n/ac
- Working Frequency Band5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5850 MHz
- Antenna Gain12 dBi
- Antenna Angle(H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35°
- Transmitting Power22 dBm (Note: Transmitting power may vary with local regulations.)
- Receiving Sensitivity-58±2 dBm@AC80-MCS9,-84±2dBm@AC80-MCS0
- Hardware Parameter
- Power Supply12 VDC/1 A Passive PoE
- Network Interface2 × 1000 Mbps RJ45 ports
- LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
- ResetHardware resetting button
- Software Function
- Application FunctionTDMA,DFS,TPC,IFM,IPM
- Channel Width20/40/80 MHz
- Channel SelectionAuto/manual selection
- Network ProtocolNTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging)
- Security ModeWPA2-PSK
- Security MechanismWireless network name hidden
- Management MethodWeb,iVMS-4200,HCP
- UpgradeWeb,iVMS-4200,HCP
- System LogSyslog,Control center information
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
- RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17,FCC Part 15.247
Tiekėjo specifikacijos
Product code
CPEDS3WF02C5ACOV2
Supplier's product code
CPEDS3WF02C5ACOV2
Product ID
U-4193080
Category
Accessories for commutatio
Brand
Hikvision
Tiekėjo pateikiama informacija apie prekę gali skirtis nuo realaus produkto. Jei pastebėjote neatitikimų praneškite apie tai el. paštu [email protected].
