Tiekėjo prekės aprašymas
FTP Cat network cable. 6A - 500 m package

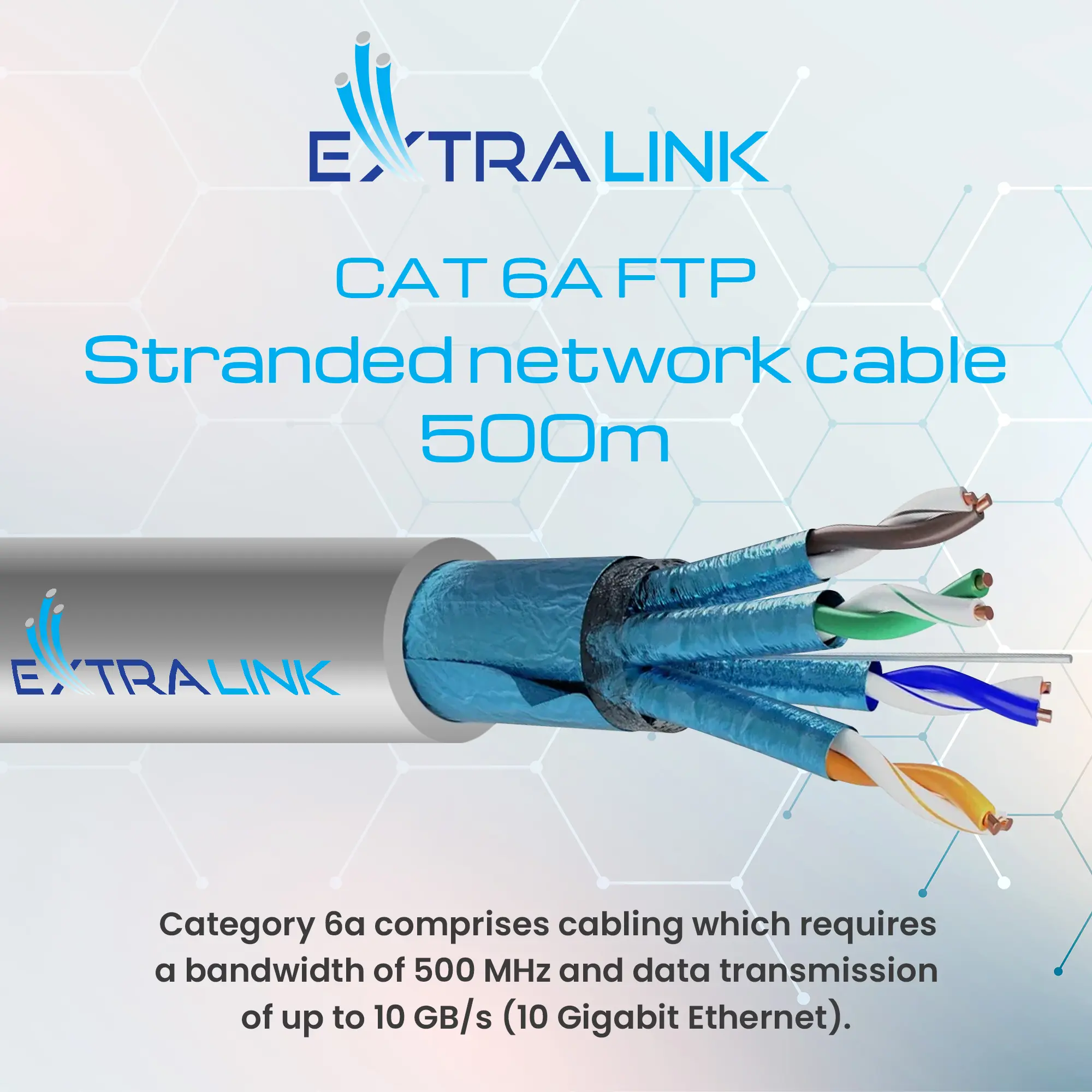

Extralink Cat. 6A FTP is a high quality network cable for indoor installation. Category 6a includes cabling that requires a 500 MHz band and data transmission up to 10 Gb/s (10 Gigabit Ethernet). The cable construction consists of 4 pairs of cables twisted together to eliminate electromagnetic interference. The cables are made of pure copper with a thickness of 23 AWG with HDPE sheath. Every pair is separately shielded with aluminium foil and additionally one common shielding for all cables. The whole is covered with a combustion safe Low Smoke Zero Halogen (LSZH) coating, in accordance with the requirements of the fire safety regulations for large commercial buildings.
The package contains 500 m of cable.
Key features
Key features
- FTP Cat. 6a
- Length 500 m
- HDPE coating
- Individual shielding for each pair
- Earthing cable
- Product designed for indoor installation
Installation inside buildings - high level of safety
The product is intended for stationary installations inside buildings, stations, structures and equipment exposed to an increased risk of electromagnetic discharges. The cable is ideal for cabling that requires a frequency range of up to 500 MHz. The LSZH outer sheath guarantees a high level of safety.
Construction
The cable is designed for outdoor use and is resistant to harsh weather conditions and mechanical damage.

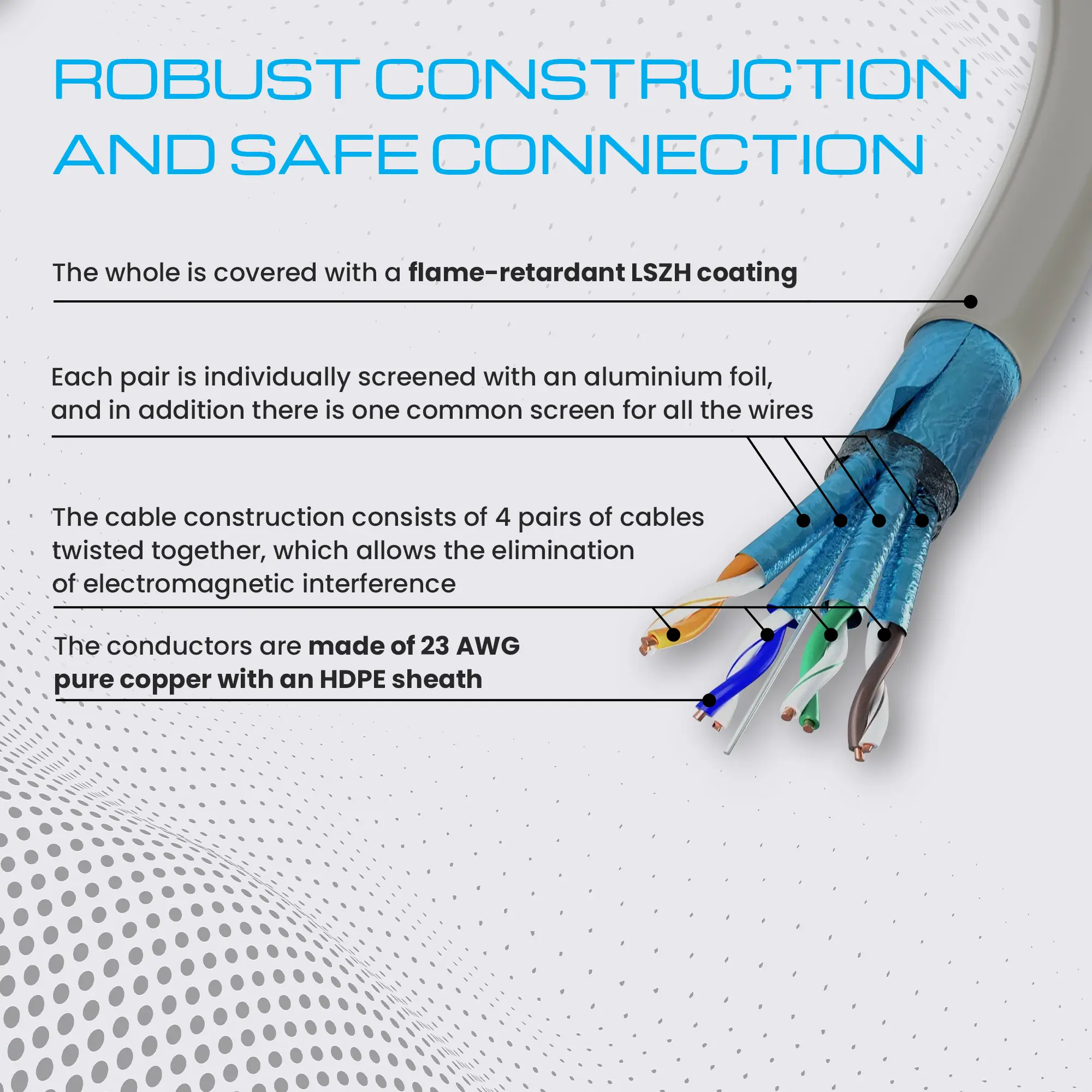

Construction
- 1. copper wire Ø 0.56 mm
- HDPE insulation Ø 1.35 mm
- 3. a pair of wires
- 4. individual shielding of each pair with aluminium foil
- 5. grounding cable Ø 0.4 mm
- 6. film
- 7. main shielding made of aluminium foil
- 8. outer coating of LSZH, 0.5 mm thick
| Cabel for assembly | Inside the building |
| Cable category | Cat.6A |
| Length | 500m |
| Shielding type | F/FTP |
| Cable length | 500 |
| Cable shape | Round |
| Cable shielding | F/FTP (FFTP) |
| Cable standard | Cat6a |
| Cable top coat | LSZH |
| Cable type | Installation cables |
| Colour | Grey |
| Conductor material | Copper |
| Connector 1 | No |
| Connector 1 gender | No |
| Connector 2 | No |
| Connector 2 gender | No |
| Doesn't contain | Halogen |
| Ethernet interface type | 10 Gigabit Ethernet |
| Frequency | 500 |
| Jacket material | Low smoke zero halogen (LSZH) |
| Package type | Wooden drum |
| Product colour | Grey |
| Quantity per pack | 1 |
