Extralink SC/UPC-SC/APC | Patchcord | LSZH, Single mode, Simplex, G.657B3, 3mm, Easy Flex, 15m, EXTRALINK
Pristatymo terminai
Prekė užsakoma iš tiekėjo sandėlio. Jei tiekėjas šios prekės pristatyti iki nurodytos datos negalės, informuosime jus el. paštu.
 Yra | Tiekėjo sandėlis |
Pristatymas į namus
Pristatymas į namus
Perdavę prekes kurjeriui, informuosime Jus el. paštu.
Virš 30,00 € (Užsakymams iki 1000 kg) | Nemokamai |
Iki 30,00 € (Užsakymams iki 3 kg) | 2,99 € |
Iki 30,00 € (Užsakymams iki 1000 kg) | 3,59 € |
Pristatymas į paštomatą
Pristatymas į paštomatą
1,99 €
Tiekėjo prekės aprašymas

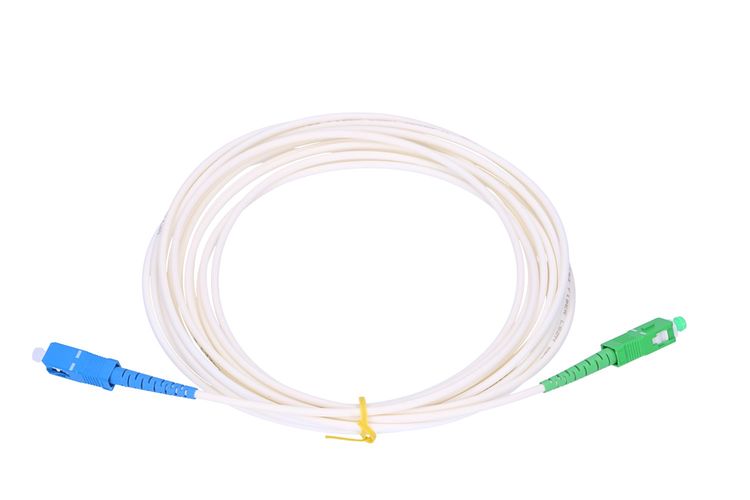

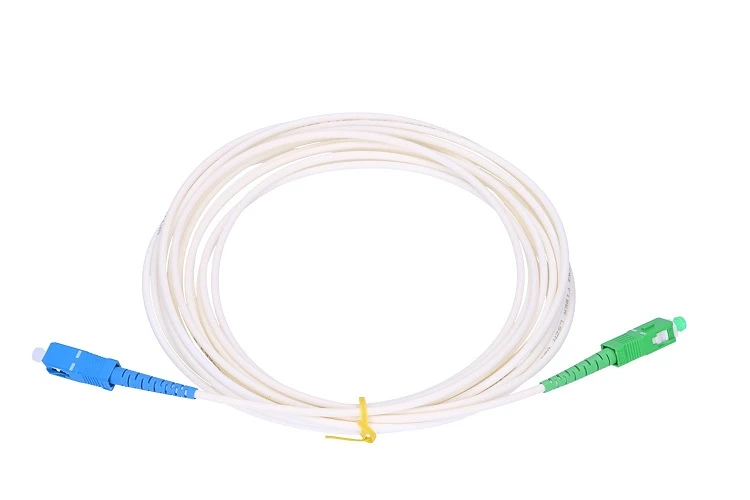

Patchcord SC/UPC-SC/APC SM G.657B3 SIMPLEX 3.0MM 15M LSZH EASY FLEX
This single-mode patchcord is 15 meters long, has a diameter of 3 mm, and is terminated with SC/UPC-SC/APC connectors. It is used for connecting optical network equipment such as switches or converters. Patchcords are also widely used in FTTH networks to connect OLT and ONU/ONT type devices. These cables have a LSZH (Low Smoke Zero Halogen) material classification, which means that their sheath is made of such thermoplastic or thermosetting compounds, which under the influence of high temperatures emit only a limited amount of smoke and do not emit halogen.
Features
Features
- Low attenuation
- Operation over a wide temperature range
- Repeatability of measurements
- Repeatability of parameters
Purpose
Purpose
- FTTH networks
- LAN, WAN
- WDM systems
| Cable category | Single-Mode |
| Fiber standard | G.657.B3 |
| Length | 15m |
| Types of connectors | SC/UPC-SC/APC |
| Cable diameter | 3,0mm |
| Cable diameter | 3 |
| Cable length | 15 |
| Cable type | FTTH |
| Connector 1 | SC/UPC |
| Connector 1 gender | Male |
| Connector 2 | SC/APC |
| Connector 2 gender | Male |
| Connector material | Ceramic |
| Fiber mode structure | Single-mode |
| Fiber optic patchcord type | Simplex |
| Fibre optic type | G.657.B3 |
| Full duplex | No |
| Jacket material | Low smoke zero halogen (LSZH) |
| Package depth | 200 |
| Package height | 600 |
| Package type | Box |
| Package volume | 0.24 |
| Package weight | 9.25 |
| Package width | 200 |
| Plug and Play | Yes |
| Product colour | White |
| Quantity per pack | 100 |
| Test protocol included | Yes |
| Weight | 92 |
